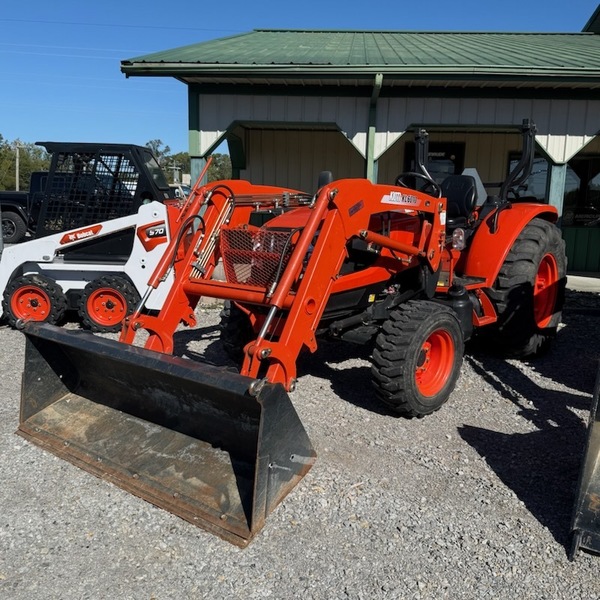

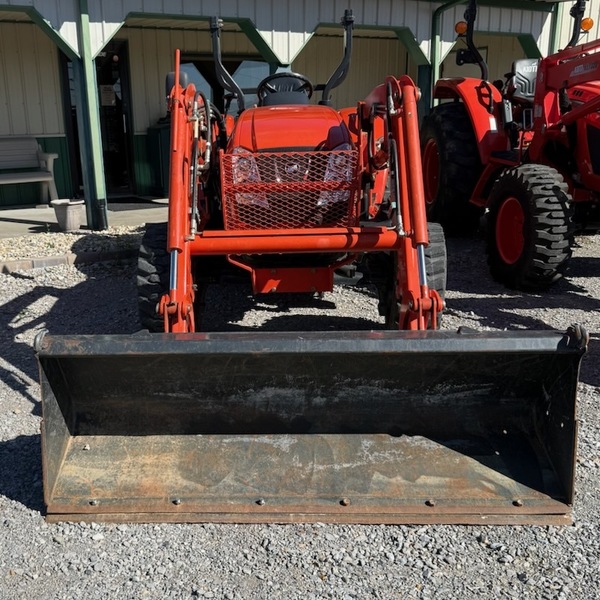

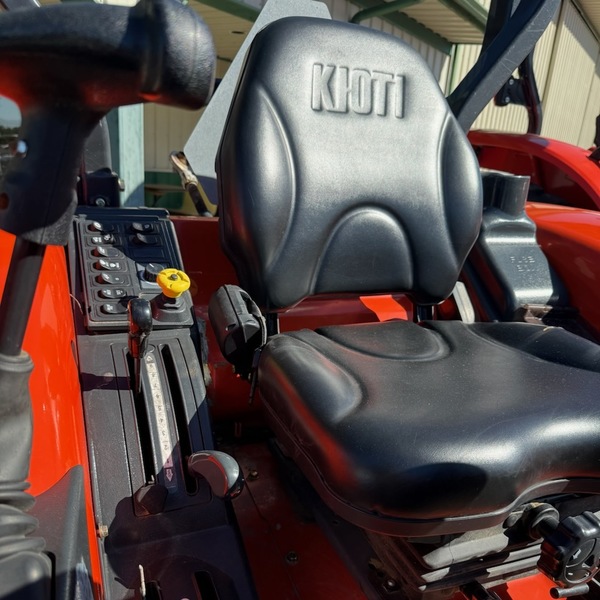

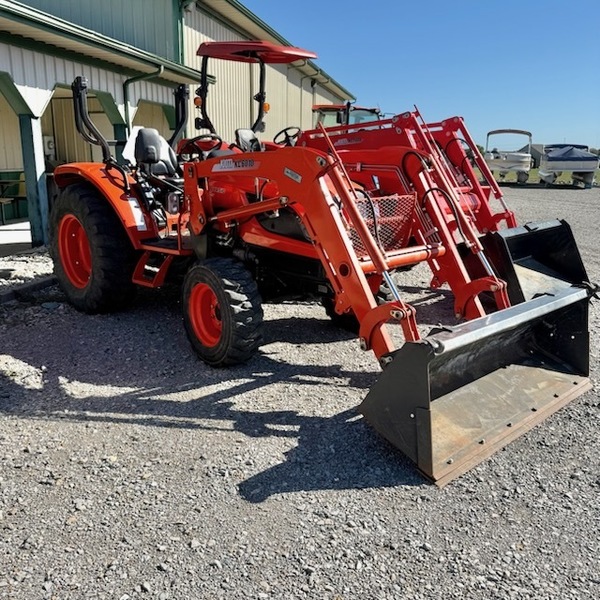

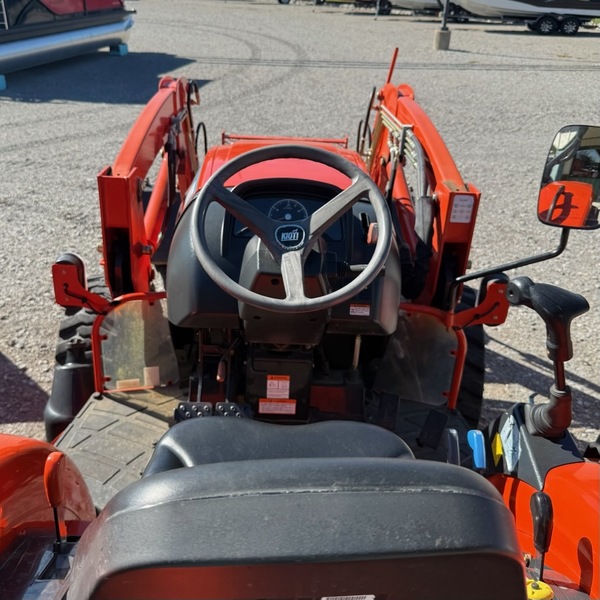

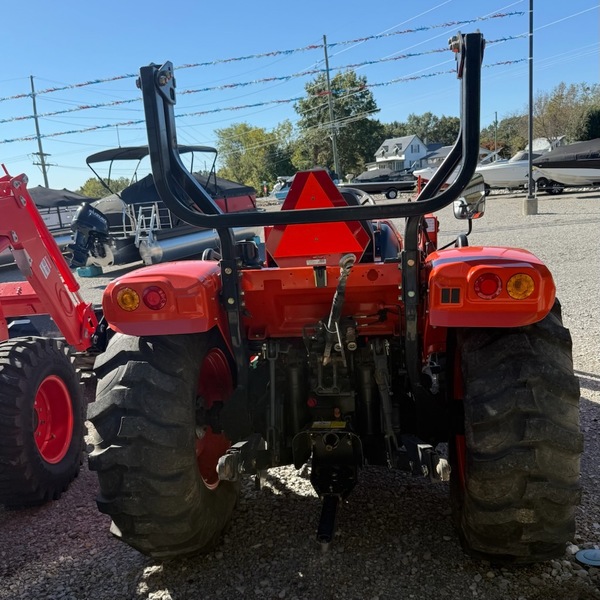

2012 Kioti NX 4510 4x4

- HST: Hydrostat

- 300 Hours

- 2 Sets of Rear Remotes

- 4 Wheel Drive

- Quick Detach KL 6010 Bucket

ENGINE & POWER

- Engine model: Daedong 3F183T (turbocharged, 3‑cylinder, liquid cooled)

- Displacement: 111.4 cu in (1,826 cc)

- Gross horsepower: ~ 45 hp (33.6 kW)

- Rated engine speed: 2,600 rpm

- Fuel tank capacity: ~ 14.8 gallons (56 L)

- Fuel system: Common Rail Direct Injection (CRDI)

TRANSMISSION & DRIVETRAIN

- Hydrostatic (HST) option — 3-range HST, infinite speeds within each range

- H&M Equipment Co., Inc. New York

- Drive: 4WD/MFWD (four-wheel drive)

- Differential lock: Rear standard

PTO & HITCH

- PTO: Independent rear PTO

- PTO power (gear): ~ 37.6 hp (28.0 kW)

- Mid PTO (optional): 2,000 rpm

- 3-point hitch: Category I, with position & draft control

- Lift capacity (at 24″ behind the hitch): ~ 3,177 lb (1,441 kg)

HYDRAULICS

- Hydraulic pump: Gear pump (open center)

- Hydro version flow rate ~ 17.9 GPM (67.8 L/min)

DIMENSIONS & WEIGHT

- Wheelbase: 75.6 in (1,920 mm)

- Length (with 3‑point hitch): ~ 139.6 in (3,547 mm)

- Width (minimum): ~ 65.5–65.6 in (1,665 mm)

- Height (ROPS): ~ 103.1 in (2,618 mm)

- Height (Cab, if equipped): ~ 94.1 in (2,390 mm)

- Ground clearance: ~ 13.7 in (350 mm)

- Front tread (min): ~ 55.2 in (1,352 mm)

- Rear tread (min): ~ 52.1 in (1,324 mm)

- Turning radius (with brake): ~ 9.81 ft (2.99 m)

- Weight (with agricultural tires, ROPS): ~ 3,978 lb (1,804.4 kg)

- Weight range (depending on transmission / cab): 4,057 to 4,548 lb

TIRES

- Agricultural: Front 8‑16, Rear 13.6‑24

- Industrial: Front 10‑16.5, Rear 14.9‑24

- Turf / Lawn: Front 29‑12.5‑15, Rear 21.5L‑16.1
